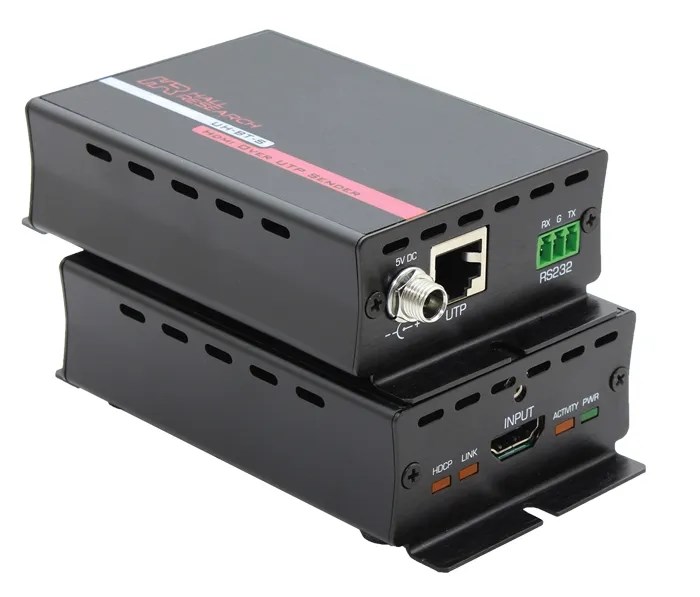

HDMI over UTP Extender with HDBaseT™ Class B (HDBaseT-Lite™) Sender & Receiver

HDMI over UTP Extender with HDBaseT™ Class B (HDBaseT-Lite™) Sender & Receiver

UH-BT
ETA TBC
This HDBaseT extension kit is comprised of a compact Sender (UH-BT-S) and corresponding Receiver (UH-BT-R).

The UH-BT and UH-BTX are a family of HDBaseT™ compliant Senders and Receivers used to extend uncompressed HDMI video and RS-232 control signals up to 230 ft (-BT models) or 328 ft (-BTX models) over a single CAT5e/CAT6 UTP cable.

The extenders are comprised of a Sender (-S) and a Receiver (-R) and extend all PC and HD resolutions without compression, up to 4K UHD.

Full-duplex RS-232 extension is provided via 3-pin terminal blocks, supporting all baud rates up to 115,200 bps.

Read Full Description
This HDBaseT extension kit is comprised of a compact Sender (UH-BT-S) and corresponding Receiver (UH-BT-R).<p> The UH-BT and UH-BTX are a family of HDBaseT™ compliant Senders and Receivers used to extend uncompressed HDMI video and RS-232 control signals up to 230 ft (-BT models) or 328 ft (-BTX models) over a single CAT5e/CAT6 UTP cable.<p> The extenders are comprised of a Sender (-S) and a Receiver (-R) and extend all PC and HD resolutions without compression, up to 4K UHD.<p> Full-duplex RS-232 extension is provided via 3-pin terminal blocks, supporting all baud rates up to 115,200 bps. <span class="stock-tbc">ETA TBC</span> Request More Information

    Information

    Extends HDMI (or DVI) + RS-232 over a single CAT5e/CAT6 UTP cable up to 230/328 ft (70/100 m) depending on Model

    Optional Long Reach mode (BTX Only) to extend 1080p up to 492 ft / 150 m.

    Utilizes HDBaseT™ Class B (HDBaseT-Lite™) extension technology

    Can connect to all HDBaseT™ and HDBaseT-Lite™ compliant products

    Full HD support for 1080p deep color, 3D, and 4K UHD

    HDCP Compliant with pass-thru EDID from display back to source

    CEC pass-thru for simplified control among compatible devices

    Uncompressed digital video extension guarantees 100% fidelity

    Reliable, trouble free operation

    Plug and Play – no user configuration required

    Sturdy, compact metal enclosure with mounting provisions

    Compatible with Locking HDMI connectors

    Universal Power Supplies with Locking connectors

    Designed and manufactured in USA
