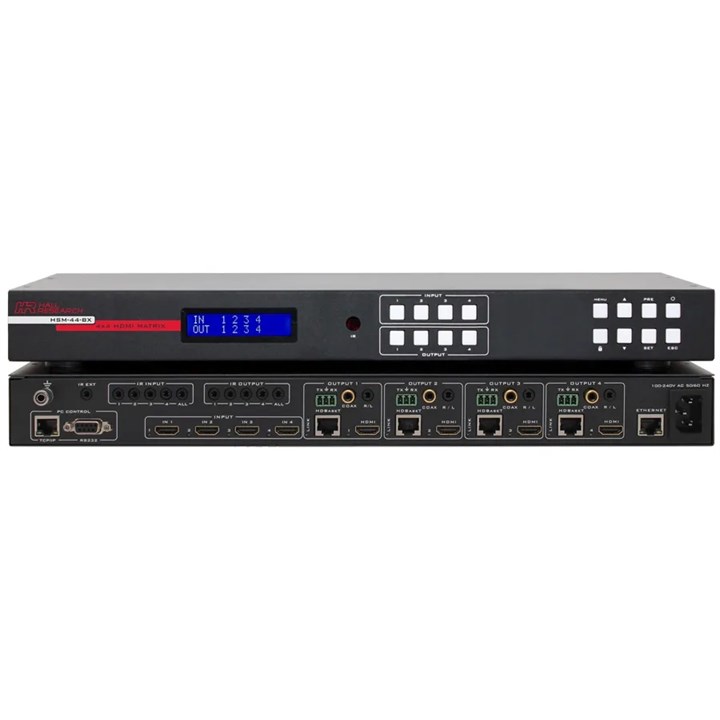

4K 4X4 HDMI Matrix Switch with simultaneous HDMI and HDBaseT outputs

HSM-44-BX
ETA TBC
As a member of Genesis Digital Matrix™ series of switchers, the HSM-44-BX matrix provides exceptional quality, intuitive operation and powerful control methods that are hallmarks of Hall Technologies' video matrix switches.

The 4K matrix is a 4×4 cross-point switch in a compact 1-RU enclosure. Each output has integrated video splitter so that simultaneous HDMI and HDBaseT are provided.

The HDBaseT outputs extend HDMI, IR, RS-232, Ethernet, and Power over a single CAT6 cable to 100m (328 ft). The HDBaseT outputs are compatible with all compliant HDBaseT receivers such as the Hall Techonologies' HBX-R which is a cost-effective Receiver that provides HDMI, IR, RS-232 and IP (Ethernet) extension and gets its power from the matrix for maximum convenience.

The HSM-44-BX supports HDMI resolutions up to 4K @ 30 Hz 4:4:4 and 4K @ 60 Hz 4:2:0. It also supports HDCP 2.2 and 1.4, 3D, deep-color. PCM, Dolby, DTS, and HD audio standards. The matrix intelligently calculates EDID for each input based on the EDID of the connected sinks.

HDCP 2.2 and 4K UHD

Simultaneous HDMI and HDBaseT on each output

Extends HDMI, IR, RS-232, Ethernet, and Power on HDBaseT

Intuitive front panel control with two-line LCD

Analog and Digital Extracted Audio Outputs

Uses Genesis™ Control Command Set (GCCS)

Save and Recall Presets of commonly used routing patterns

HDMI video output can be blanked or un-blanked

Controlled via: Front Panel, RS232, IP (Telnet), and IR

Internal Universal Power Supply with standard IEC C14 connector

1U rack-mountable metal enclosure
